STGCR 2020K16 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – STGC R/L

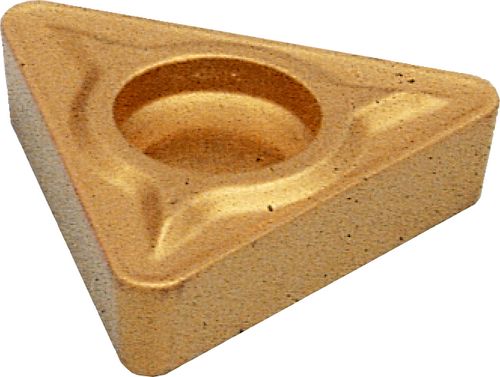

90° approach for 7° positive triangular inserts.
Out of stock
SKU : IND1065740K
Indexa Screw-On External Toolholders – STGC R/L
90° approach for 7° positive triangular inserts.

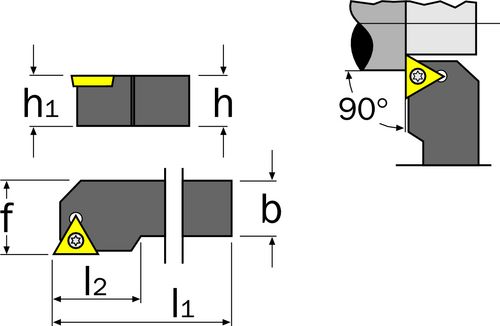

Specification :
Brand : Indexa
Designation STGC…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.395
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
