STGCR 1212F11 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – STGC R/L

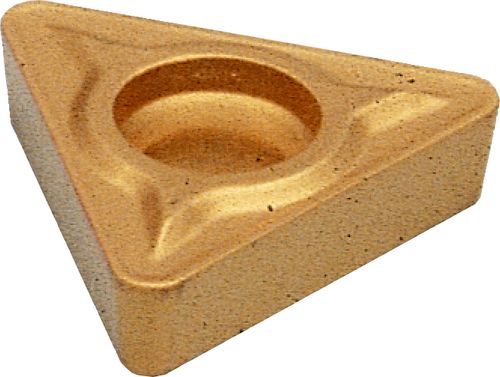

90° approach for 7° positive triangular inserts.
Out of stock
SKU : IND1065660K
Indexa Screw-On External Toolholders – STGC R/L
90° approach for 7° positive triangular inserts.
Specification :
Brand : Indexa

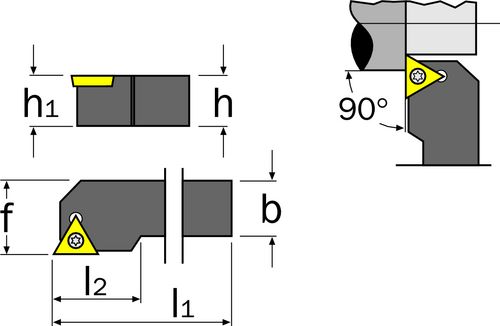

Designation STGC…. : R 1212F
Dimensions b : 12
Dimensions f : 16
Dimensions h=h1 : 12
Dimensions l1 : 80
Dimensions l2 : 18
eCl@ss Code : 28039190
Overall Weight : 0.09
Supplier Part No. : 106-5660
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
