SSSCR 2020K12 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SSSC R/L

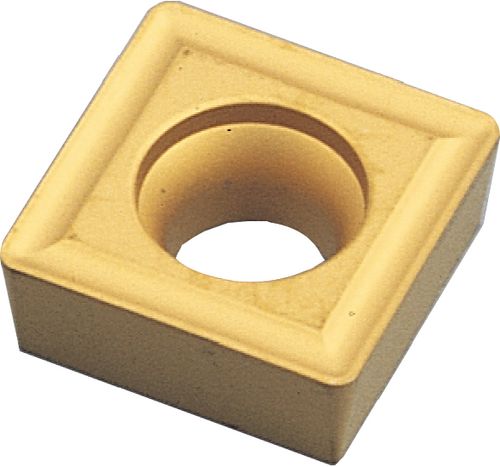

45° approach for 7° positive square inserts.
Out of stock
SKU : IND1065390K
Indexa Screw-On External Toolholders – SSSC R/L
45° approach for 7° positive square inserts.
Specification :
Brand : Indexa

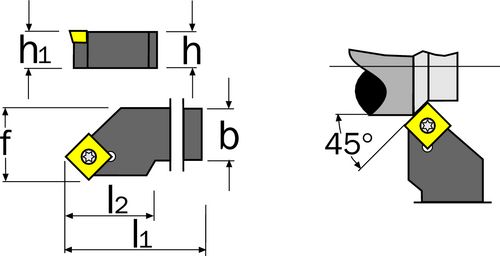

Designation SSSC…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.415
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
