SSSCR 1616H09 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SSSC R/L

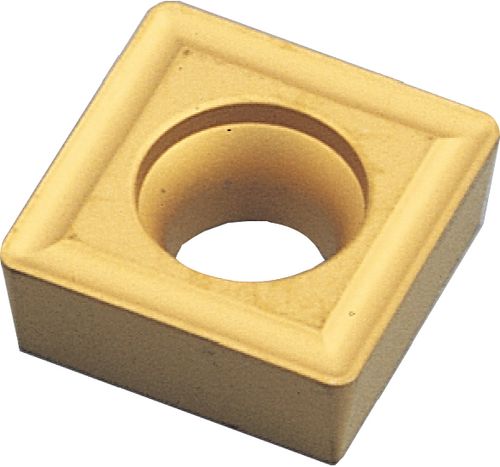

45° approach for 7° positive square inserts.
Out of stock
SKUÂ :Â IND1065350K
Indexa Screw-On External Toolholders – SSSC R/L
45° approach for 7° positive square inserts.

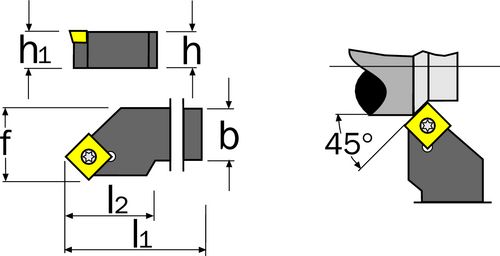

Specification :
Brand : Indexa
Designation SSSC…. : R 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1Â :Â 16
Dimensions l1Â :Â 100
Dimensions l2Â :Â 22
eCl@ss Code : 28039190
Overall Weight : 0.21
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
