SSSCR 1212F09 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SSSC R/L

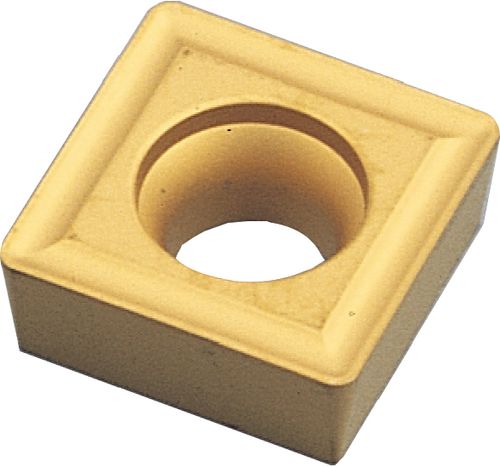

45° approach for 7° positive square inserts.
Out of stock
SKU : IND1065310K
Indexa Screw-On External Toolholders – SSSC R/L
45° approach for 7° positive square inserts.
Specification :
Brand : Indexa
Designation SSSC…. : R 1212F

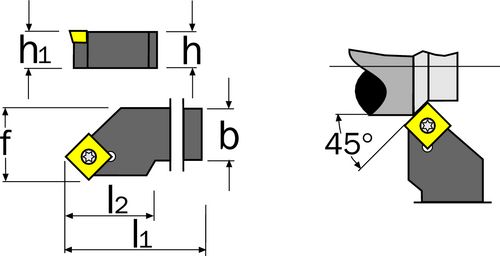

Dimensions b : 12
Dimensions f : 16
Dimensions h=h1 : 12
Dimensions l1 : 80
Dimensions l2 : 11
eCl@ss Code : 28039190
Overall Weight : 0.098
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
