SSDCN 1616H09 EXTERNAL TOOLHOLDER
Rp1.458.000
Indexa Screw-On External Toolholders – SSDC N

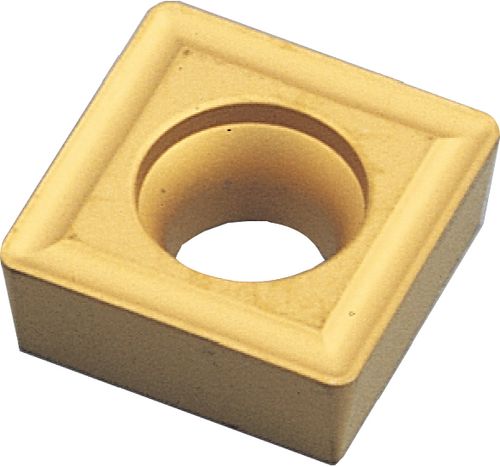

45° approach for 7° positive square inserts.
Out of stock
SKU : IND1065180K
Indexa Screw-On External Toolholders – SSDC N
45° approach for 7° positive square inserts.

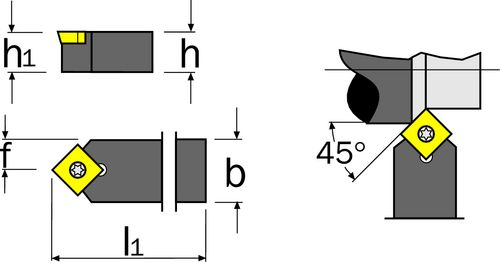

Specification :
Brand : Indexa
Designation SsDC…. : N 1616H
Dimensions b : 16
Dimensions f : 8
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : –
eCl@ss Code : 28039190
Overall Weight : 0.195
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
