SRDCN 2525M08 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SRDC N

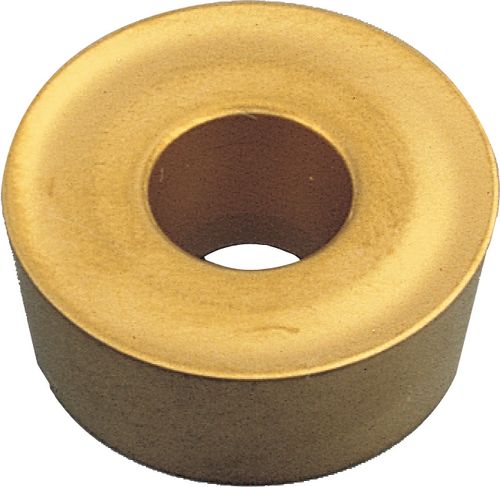

90° approach for positive round inserts.
Out of stock
SKU : IND1064980K
Indexa Screw-On External Toolholders – SRDC N
90° approach for positive round inserts.
Specification :
Brand : Indexa

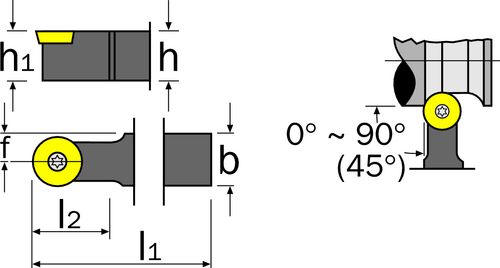

Designation SRDC…. : N 2525M
Dimensions b : 25
Dimensions f : 16.5
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 25
eCl@ss Code : 28039190
Overall Weight : 0.595
Supplier Part No. : 106-4980
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
