SRDCN 2525M06 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SRDC N

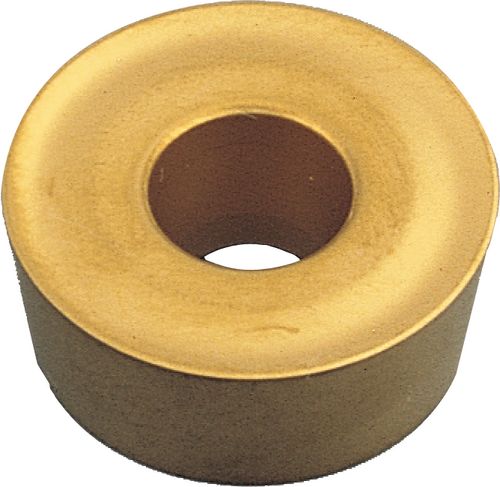

90° approach for positive round inserts.
Out of stock
SKU : IND1064970K
Indexa Screw-On External Toolholders – SRDC N
90° approach for positive round inserts.
Specification :
Brand : Indexa

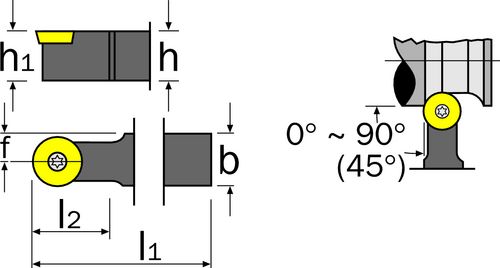

Designation SRDC…. : N 2525M
Dimensions b : 25
Dimensions f : 15.5
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 25
eCl@ss Code : 28039190
Overall Weight : 0.625
Supplier Part No. : 106-497
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
