SRDCN 2020K08 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SRDC N

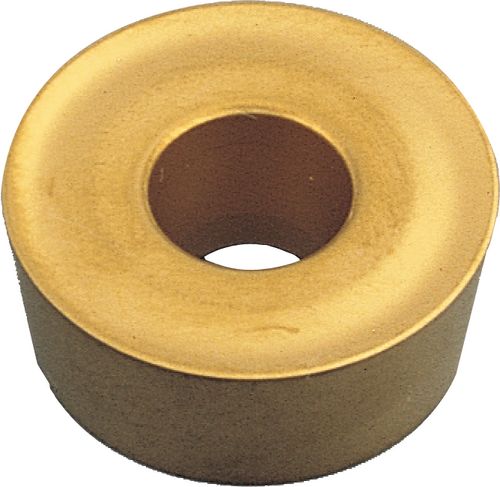

90° approach for positive round inserts.
Out of stock
SKU : IND1064960K
Indexa Screw-On External Toolholders – SRDC N
90° approach for positive round inserts.
Specification :
Brand : Indexa
Designation SRDC…. : N 2020K

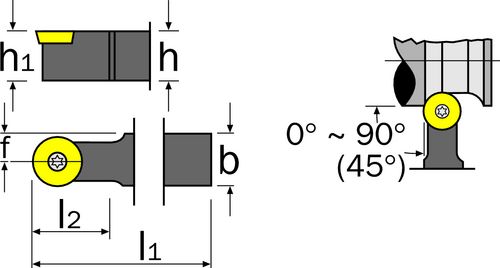

Dimensions b : 20
Dimensions f : 14.0
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 20
eCl@ss Code : 28039190
Overall Weight : 0.32
Supplier Part No. : 106-4960
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
