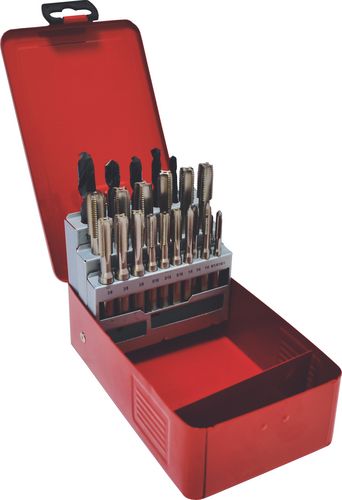

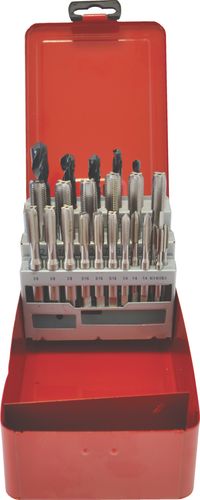

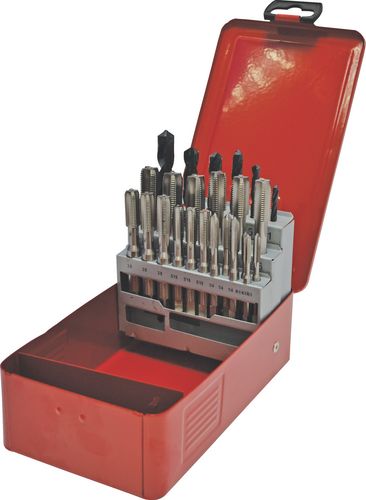

SET OF 24 HSS UNF DRILLS& TAPS No10 – 1/2″
Tap & Drill Sets – 24 Pieces
24 Piece Tap & Drill Sets – Taps (Taper, Second and Bottom)
Industrial Quality. Ground flute, blue finish. Supplied in indexing metal cases. Manufactured to BS328: Part 1: 1986, DIN 338N & ANSI B94 -11M.
UNC Tap & Drill
Taps No8 ~ 1/2â + Tapping Drills 3.5 ~ 10.28
UNF Tap & Drill
Taps No10 ~ 1/2â + Tapping Drills 4.1 ~ 11.5
BSW Tap & Drill
Taps 3/16â ~ 1/2â + Tapping Drills 3.7 ~ 10.5
SKU : SHR0259980K
Tap & Drill Sets – 24 Pieces
24 Piece Tap & Drill Sets – Taps (Taper, Second and Bottom)
Industrial Quality. Ground flute, blue finish. Supplied in indexing metal cases. Manufactured to BS328: Part 1: 1986, DIN 338N & ANSI B94 -11M.
UNC Tap & Drill
Taps No8 ~ 1/2â + Tapping Drills 3.5 ~ 10.28
UNF Tap & Drill
Taps No10 ~ 1/2â + Tapping Drills 4.1 ~ 11.5
BSW Tap & Drill
Taps 3/16â ~ 1/2â + Tapping Drills 3.7 ~ 10.5
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Number of Pieces : 24
Type : UNF (No.10 – 1/2″)
UNSPSC Code : 27112806
| Weight | 1 kg |
|---|
