SDNCN 1212F07 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – SDNC N

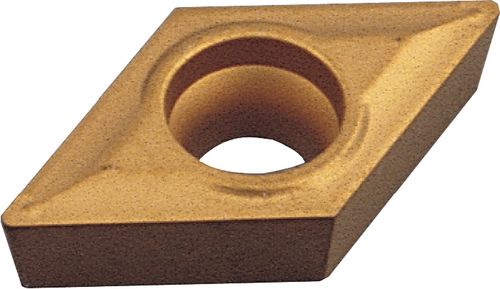

62.5° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064740K
Indexa Lever Lock External Toolholders – SDNC N
62.5° approach for 7° positive 55° rhombic inserts.
Specification :
Brand : Indexa

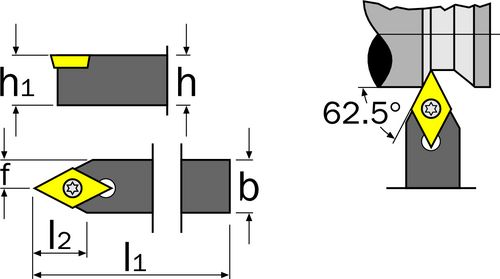

Designation SDNC…. : N 1212F
Dimensions b : 12
Dimensions f : 6.0
Dimensions h=h1 : 12
Dimensions l1 : 80
Dimensions l2 : 18
eCl@ss Code : 28039190
Overall Weight : 0.081
Supplier Part No. : 106-4740
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
