SDJCR 2525M11 EXTERNAL TOOLHOLDER
Rp1.722.000
Indexa Screw-On External Toolholders – SDJC R/L

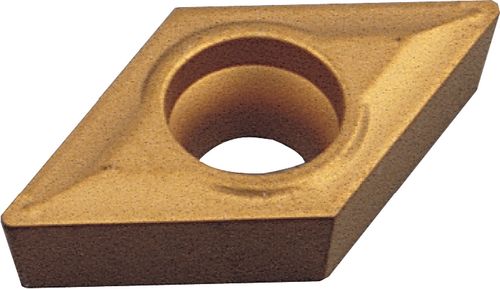

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064660K
Indexa Screw-On External Toolholders – SDJC R/L
93° approach for 7° positive 55° rhombic inserts.
Specification :
Brand : Indexa

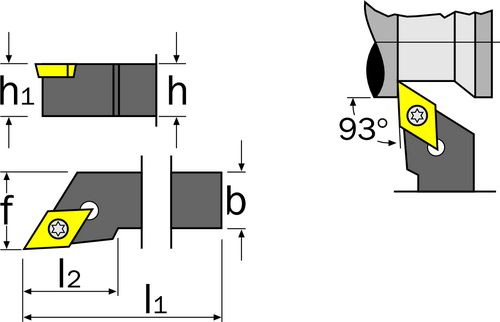

Designation SDJC…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 32
eCl@ss Code : 28039190
Overall Weight : 0.69
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
