SDJCR 1616H11 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SDJC R/L

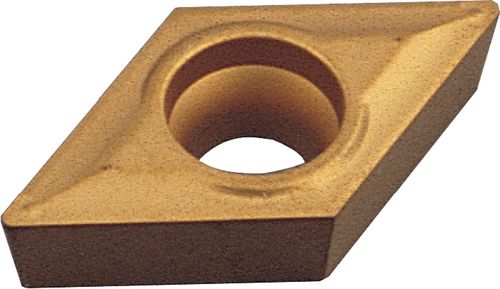

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064620K
Indexa Screw-On External Toolholders – SDJC R/L
93° approach for 7° positive 55° rhombic inserts.
Specification :
Brand : Indexa

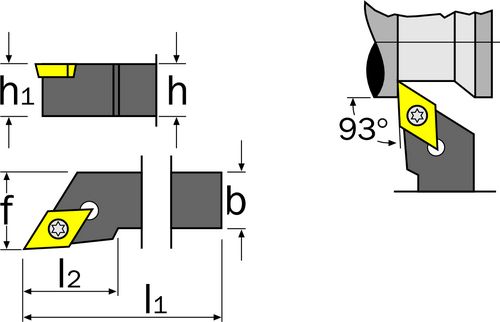

Designation SDJC…. : R 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 20
eCl@ss Code : 28039190
Overall Weight : 0.2
Supplier Part No. : 106-4620
UNSPSC Code : 23242106
