SDJCL 1212F07 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SDJC R/L

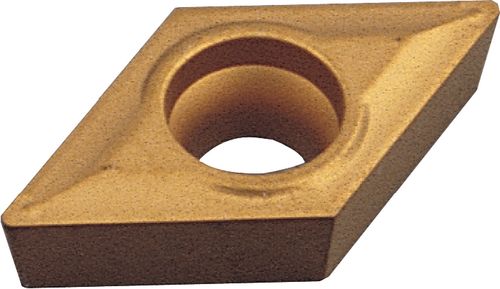

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064570K
Indexa Screw-On External Toolholders – SDJC R/L
93° approach for 7° positive 55° rhombic inserts.

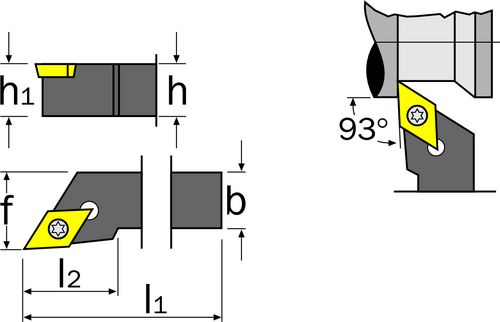

Specification :
Brand : Indexa
Designation SDJC…. : L 1212F
Dimensions b : 12
Dimensions f : 16
Dimensions h=h1 : 12
Dimensions l1 : 80
Dimensions l2 : 18
eCl@ss Code : 28039190
Overall Weight : 0.085
Supplier Part No. : 106-4570
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
