SDJCL 1010E07 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SDJC R/L

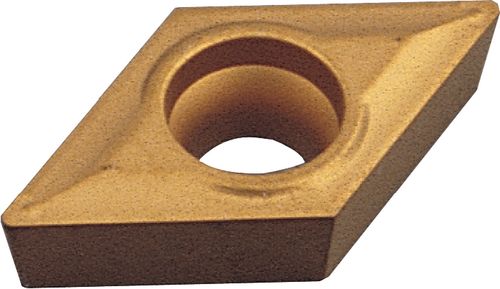

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064550K
Indexa Screw-On External Toolholders – SDJC R/L
93° approach for 7° positive 55° rhombic inserts.
Specification :
Brand : Indexa
Designation SDJC…. : L 1010E

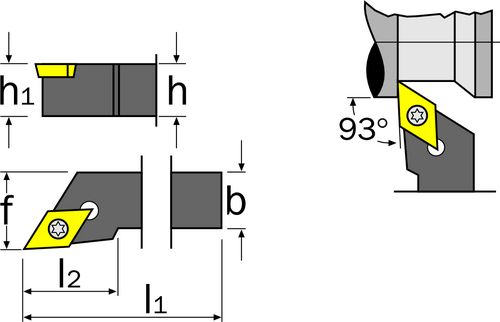

Dimensions b : 10
Dimensions f : 12
Dimensions h=h1 : 10
Dimensions l1 : 70
Dimensions l2 : 16
eCl@ss Code : 28039190
Overall Weight : 0.053
Supplier Part No. : 106-4550
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
