SCLCR 1616H09 EXTERNAL TOOLHOLDER
Rp1.458.000
Indexa Screw-On External Toolholders – SCLC R/L

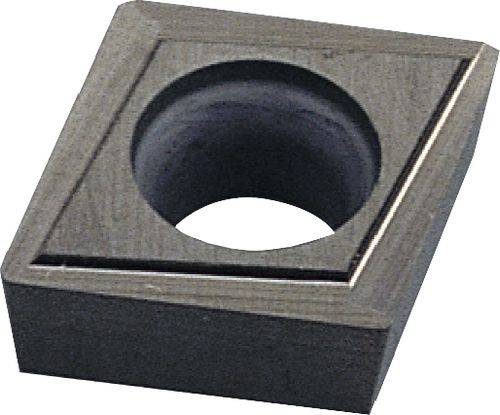

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1064480K
Indexa Screw-On External Toolholders – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

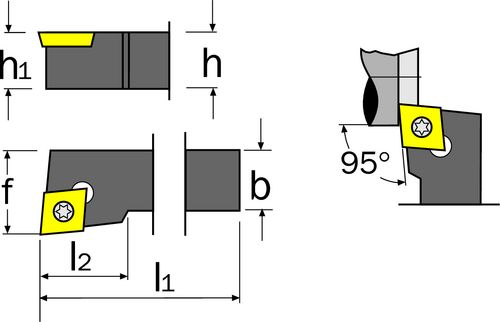

Designation SCLC…. : R 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 16
eCl@ss Code : 28039190
Overall Weight : 0.205
Supplier Part No. : 106-4480
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
