SCLCR 1010E06 EXTERNAL TOOLHOLDER
Rp1.458.000
Indexa Screw-On External Toolholders – SCLC R/L

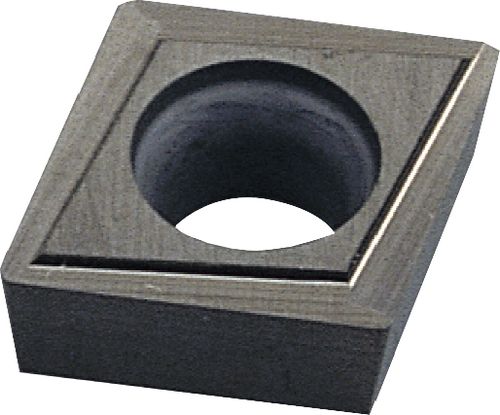

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1064420K
Indexa Screw-On External Toolholders – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

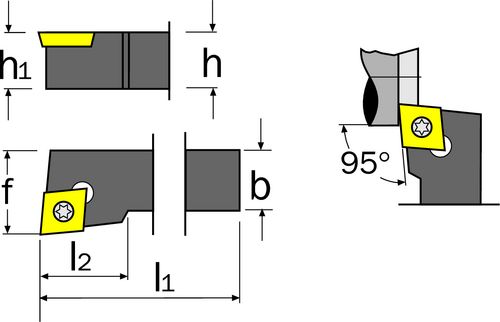

Designation SCLC…. : R 1010E
Dimensions b : 10
Dimensions f : 12
Dimensions h=h1 : 10
Dimensions l1 : 70
Dimensions l2 : 10
eCl@ss Code : 28039190
Overall Weight : 0.056
Supplier Part No. : 106-4420
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
