SCLCL 1212F09 EXTERNAL TOOLHOLDER
Rp1.458.000
Indexa Screw-On External Toolholders – SCLC R/L

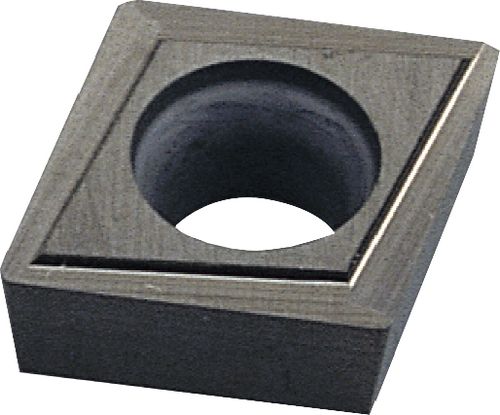

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1064470K
Indexa Screw-On External Toolholders – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

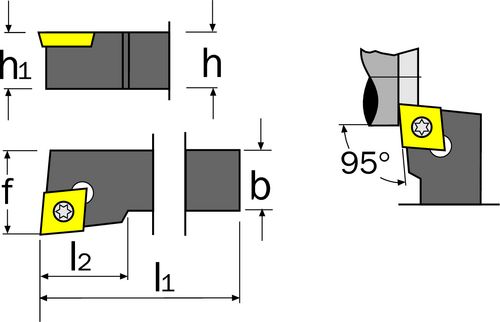

Designation SCLC…. : L 1212F
Dimensions b : 12
Dimensions f : 16
Dimensions h=h1 : 12
Dimensions l1 : 80
Dimensions l2 : 16
eCl@ss Code : 28039190
Overall Weight : 0.095
Supplier Part No. : 106-4470
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
