S50W PCLNR 16 BORING BAR
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.
Out of stock
SKU : IND1066880K
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.

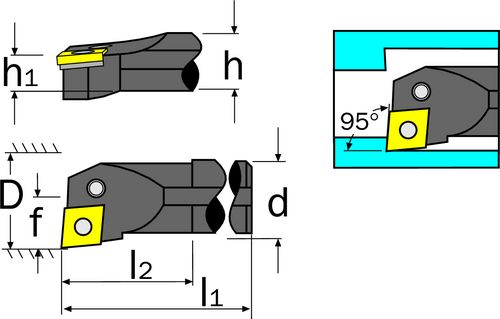

Specification :
Brand : Indexa
Dimensions dg7 : 50
Dimensions f : 35.0
Dimensions h : 47
Dimensions h1 : 23.5
Dimensions l1 : 450
Dimensions l2 : 65
Dmin : 61
eCl@ss Code : 28039190
ISO Ref : S50W PCLNR
Overall Weight : 6.46
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
