S40V PDUNR 15 BORING BAR
Indexa Lever Lock Boring Bars – PDUN R/L

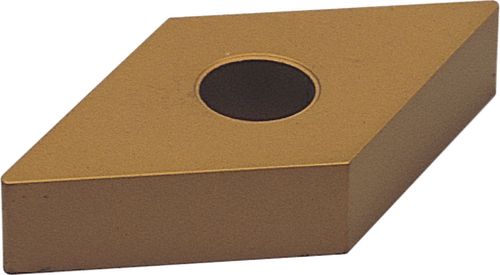

93° approach for 55° negative rhombic inserts.
Out of stock
SKU : IND1066980K
Indexa Lever Lock Boring Bars – PDUN R/L
93° approach for 55° negative rhombic inserts.

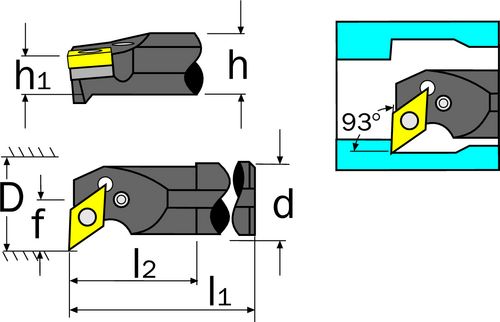

Specification :
Brand : Indexa
Dimensions dg7 : 32
Dimensions f : 27
Dimensions h : 37
Dimensions h1 : 18.5
Dimensions l1 : 400
Dimensions l2 : 60
Dmin : 48
eCl@ss Code : 28039190
ISO Ref : S40V PDUNR
Overall Weight : 3.62
Supplier Part No. : 106-6980
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
