S40V PCLNR 12 BORING BAR
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.
Out of stock
SKUÂ :Â IND1066860K
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.

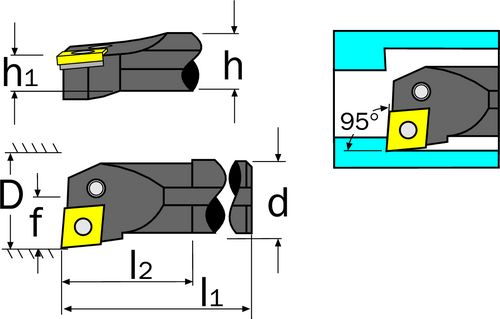

Specification :
Brand : Indexa
Dimensions dg7Â :Â 40
Dimensions f : 27.0
Dimensions h : 37
Dimensions h1Â :Â 18.5
Dimensions l1Â :Â 400
Dimensions l2Â :Â 60
Dmin : 48
eCl@ss Code : 28039190
ISO Ref : S40V PCLNR
Overall Weight : 3.62
Supplier Part No. : 106-6860
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
