S32U PDUNR 15 BORING BAR
Indexa Lever Lock Boring Bars – PDUN R/L

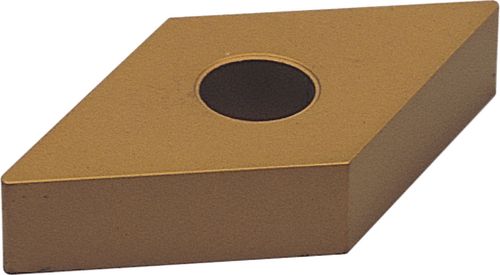

93° approach for 55° negative rhombic inserts.
Out of stock
SKU : IND1066960K
Indexa Lever Lock Boring Bars – PDUN R/L
93° approach for 55° negative rhombic inserts.

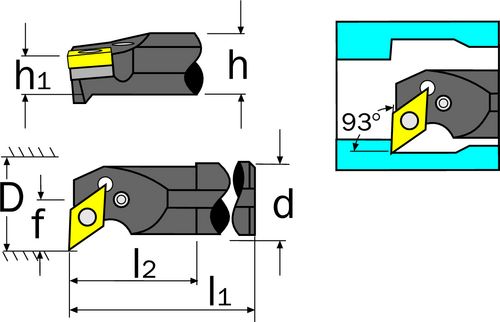

Specification :
Brand : Indexa
Dimensions dg7 : 32
Dimensions f : 22
Dimensions h : 30
Dimensions h1 : 15.0
Dimensions l1 : 350
Dimensions l2 : 50
Dmin : 39
eCl@ss Code : 28039190
ISO Ref : S32U PDUNR
Overall Weight : 2.07
Supplier Part No. : 106-6960
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
