S32U MWLNR 08 BORING BAR
Indexa Top Clamp & Pin Lock Boring Bars – MWLN R/L

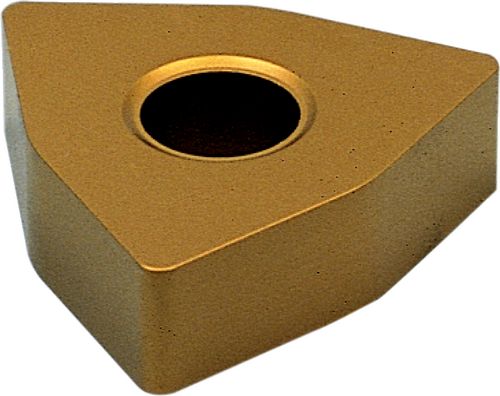

95° approach for 80° negative trigon inserts.
Out of stock
SKU : IND1066776K
Indexa Top Clamp & Pin Lock Boring Bars – MWLN R/L
95° approach for 80° negative trigon inserts.

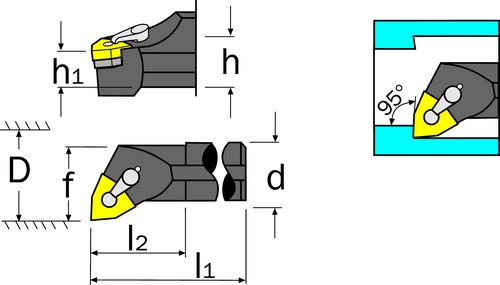

Specification :
Brand : Indexa
Dimensions dg7 : 32
Dimensions f : 22
Dimensions h1 : 15.0
Dimensions l1 : 350
Dimensions l2 : 50
Dmin : 39
eCl@ss Code : 28039190
ISO Ref : S32U MWLNR
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
