S32U CTFPR 16 BORING BAR
Indexa Top Clamp Boring Bars – CTFP R/L

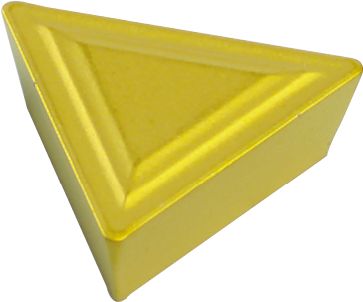

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1066480K
Indexa Top Clamp Boring Bars – CTFP R/L
90° approach for 11° positive triangular inserts.

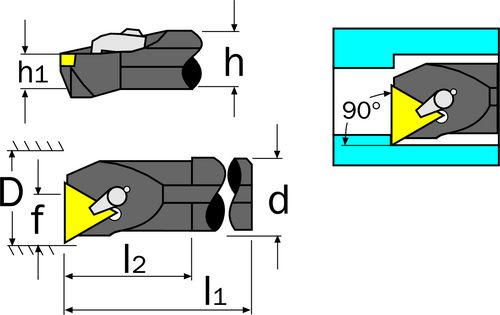

Specification :
Brand : Indexa
Dimensions dg7 : 32
Dimensions f : 22
Dimensions h : 30
Dimensions h1 : 15.0
Dimensions l1 : 350
Dimensions l2 : 50
Dmin : 39
eCl@ss Code : 28039190
ISO Ref : S32U CTFPR
Overall Weight : 2.03
Supplier Part No. : 106-6480
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
