S25T STFCR 16 BORING BAR
Indexa Screw-On Boring Bars – STFC R/L

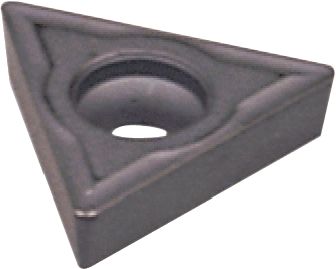

90° approach for 7° positive triangular inserts.
Out of stock
SKU : IND1067955K
Indexa Screw-On Boring Bars – STFC R/L
90° approach for 7° positive triangular inserts.
Specification :
Brand : Indexa

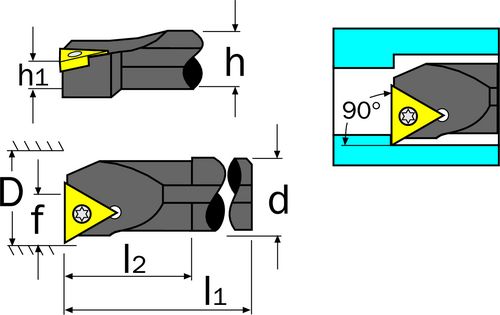

Dimensions dg7 : 25
Dimensions f : 17
Dimensions h : 23
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T STFCR
Overall Weight : 1.06
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
