S25T SCLCR 09 BORING BAR
Indexa Screw-On Boring Bars – SCLC R/L

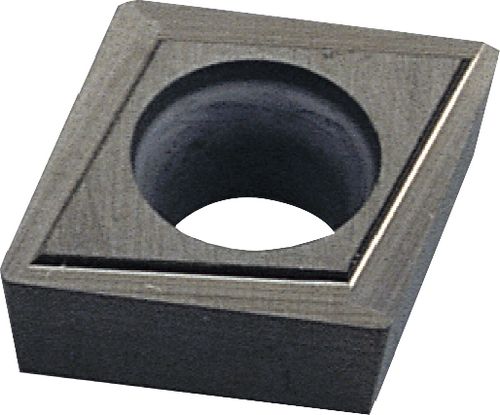

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067520K
Indexa Screw-On Boring Bars – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.

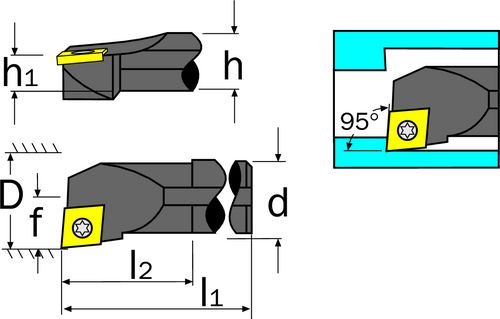

Specification :
Brand : Indexa
Dimensions dg7 : 25
Dimensions f : 17
Dimensions h : 23
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T SCLCR
Overall Weight : 1.18
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
