S25T PTFNR 16 BORING BAR
Rp4.139.000
Indexa Lever Lock Boring Bars – PTFN R/L

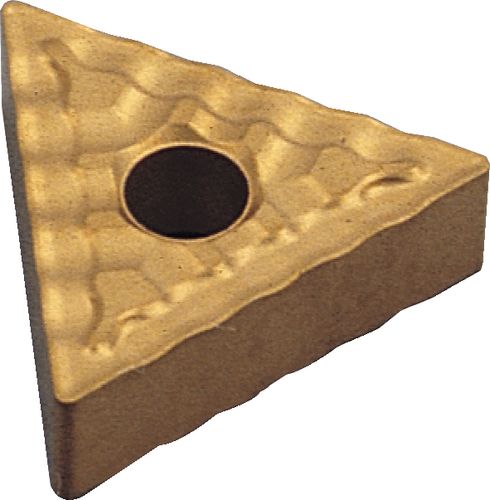

90° approach for negative triangular inserts.
Out of stock
SKU : IND1067200K
Indexa Lever Lock Boring Bars – PTFN R/L
90° approach for negative triangular inserts.

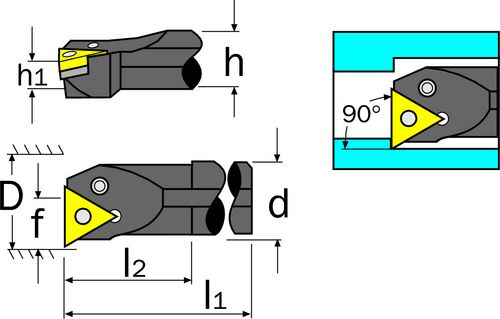

Specification :
Brand : Indexa
Dimensions dg7 : 25
Dimensions f : 17
Dimensions h : 23
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T PTFNR
Overall Weight : 1.08
Supplier Part No. : 106-7200
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
