S25T PSKNR 12 BORING BAR
Indexa Lever Lock Boring Bars – PSKN R

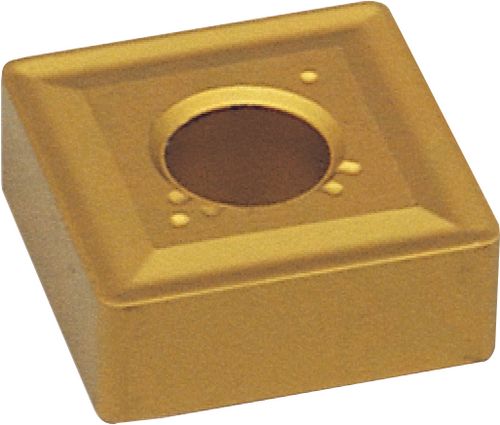

75° approach for negative square inserts.
Out of stock
SKUÂ :Â IND1067020K
Indexa Lever Lock Boring Bars – PSKN R
75° approach for negative square inserts.

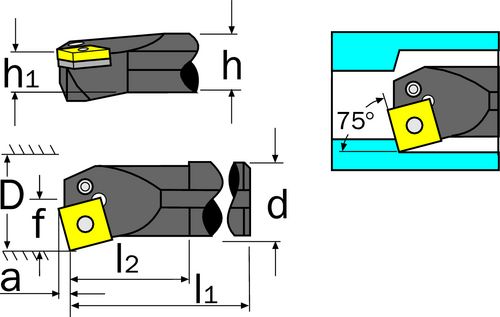

Specification :
Brand : Indexa
Dimensions a : 3.1
Dimensions f : 17
Dimensions h : 23
Dimensions h1Â :Â 11.5
Dimensions l1Â :Â 300
Dimensions l2Â :Â 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T PSKNR
Overall Weight : 1.07
Supplier Part No. : 106-7020
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
