S25T PDUNR 11 BORING BAR
Indexa Lever Lock Boring Bars – PDUN R/L

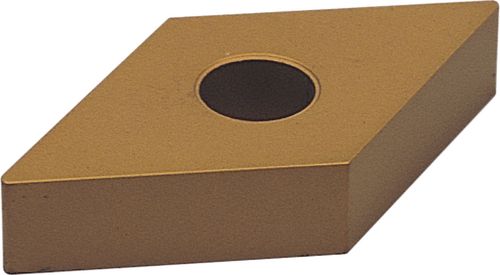

93° approach for 55° negative rhombic inserts.
Out of stock
SKU : IND1066940K
Indexa Lever Lock Boring Bars – PDUN R/L
93° approach for 55° negative rhombic inserts.

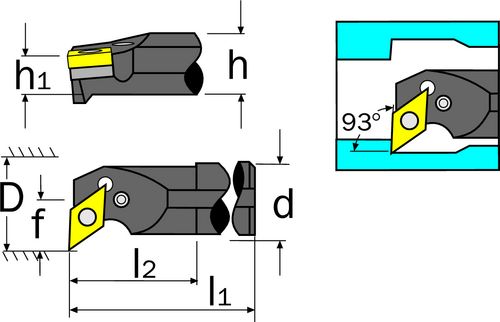

Specification :
Brand : Indexa
Dimensions dg7 : 25
Dimensions f : 22
Dimensions h : 25
Dimensions h1 : 15.0
Dimensions l1 : 300
Dimensions l2 : 50
Dmin : 30
eCl@ss Code : 28039190
ISO Ref : S25T PDUNR
Overall Weight : 1.07
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
