S25T PCLNR 12 BORING BAR
Rp4.163.000
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.
Out of stock
SKUÂ :Â IND1066820K
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.

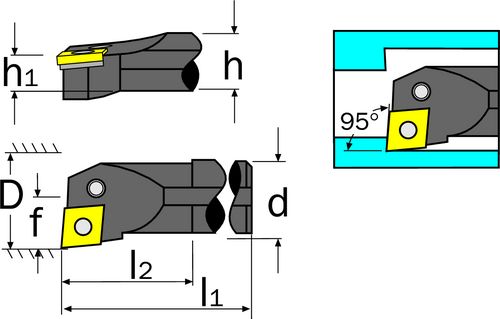

Specification :
Brand : Indexa
Dimensions dg7Â :Â 25
Dimensions f : 17.0
Dimensions h : 23
Dimensions h1Â :Â 11.5
Dimensions l1Â :Â 300
Dimensions l2Â :Â 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T PCLNR
Overall Weight : 1.09
Supplier Part No. : 106-6820
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
