S25T PCLNL 12 BORING BAR
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.
Out of stock
SKU : IND1066830K
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.

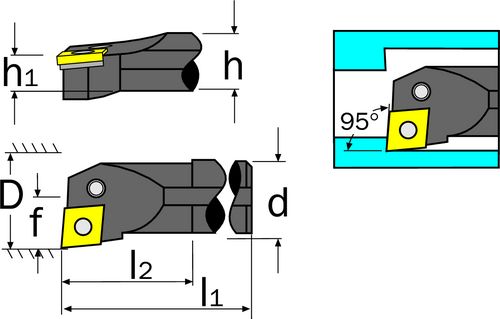

Specification :
Brand : Indexa
Dimensions dg7 : 25
Dimensions f : 17.0
Dimensions h : 23
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T PCLNL
Overall Weight : 1.07
Supplier Part No. : 106-6830
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
