S25T MWLNR 08 BORING BAR
Indexa Top Clamp & Pin Lock Boring Bars – MWLN R/L

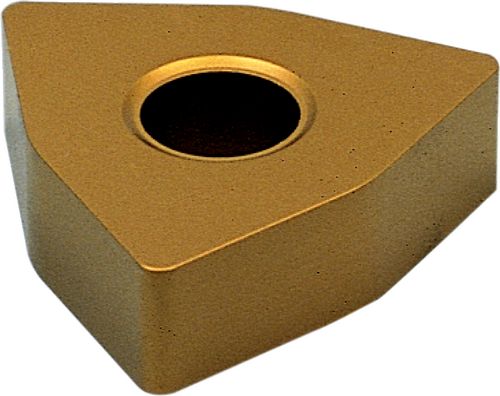

95° approach for 80° negative trigon inserts.
Out of stock
SKU : IND1066770K
Indexa Top Clamp & Pin Lock Boring Bars – MWLN R/L
95° approach for 80° negative trigon inserts.

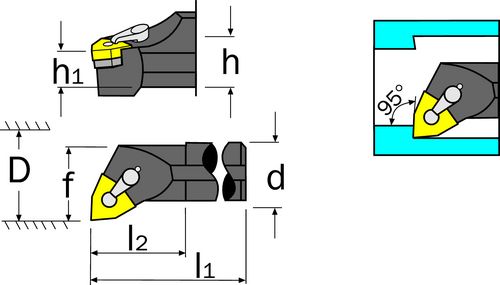

Specification :
Brand : Indexa
Dimensions dg7 : 25
Dimensions f : 17
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T MWLNR
Overall Weight : 1.12
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
