S20S STFCR 11 BORING BAR
Indexa Screw-On Boring Bars – STFC R/L

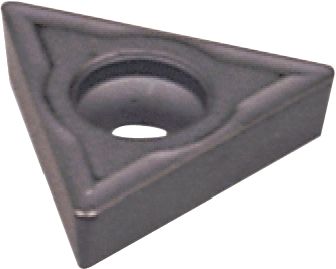

90° approach for 7° positive triangular inserts.
Out of stock
SKU : IND1067940K
Indexa Screw-On Boring Bars – STFC R/L
90° approach for 7° positive triangular inserts.

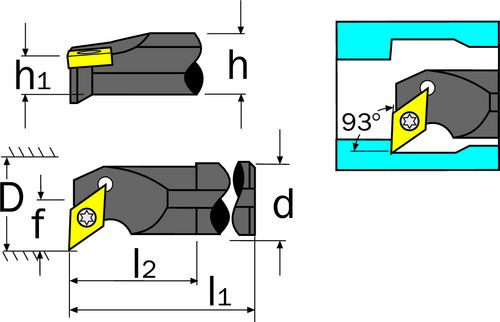

Specification :
Brand : Indexa
Dimensions dg7 : 20
Dimensions f : 13
Dimensions h : 18
Dimensions h1 : 9.0
Dimensions l1 : 250
Dimensions l2 : 35
Dmin : 24
eCl@ss Code : 28039190
ISO Ref : S20S STFCR
Overall Weight : 0.565
Supplier Part No. : 106-7940
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
