S16R SDUCL 07 BORING BAR
Indexa Screw-On Boring Bars – SDUC R/L

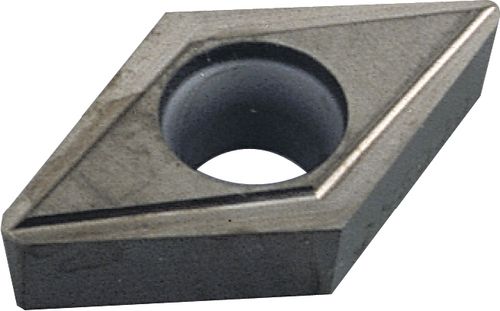

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1067690K
Indexa Screw-On Boring Bars – SDUC R/L
93° approach for 7° positive 55° rhombic inserts.

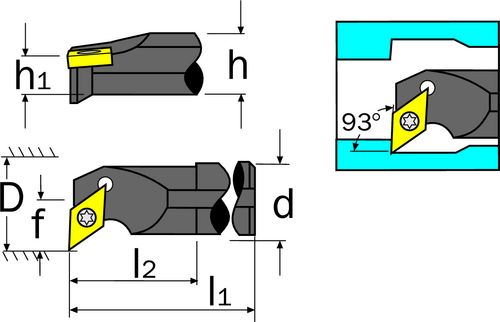

Specification :
Brand : Indexa
Dimensions dg7 : 16
Dimensions f : 11
Dimensions h : 15
Dimensions h1 : 7.5
Dimensions l1 : 200
Dimensions l2 : 30
Dmin : 20
eCl@ss Code : 28039190
ISO Ref : S16R SDUCL
Overall Weight : 0.275
Supplier Part No. : 106-7690
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
