S16R SCLCR 09 BORING BAR
Rp2.049.000
Indexa Screw-On Boring Bars – SCLC R/L

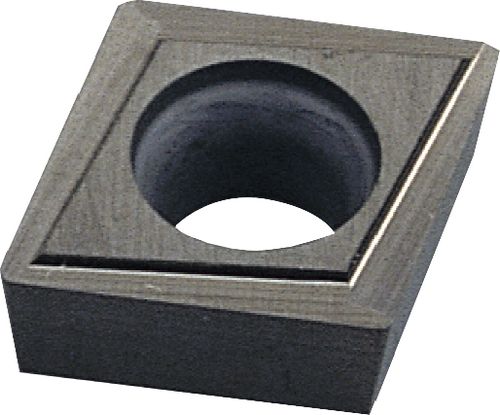

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067480K
Indexa Screw-On Boring Bars – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

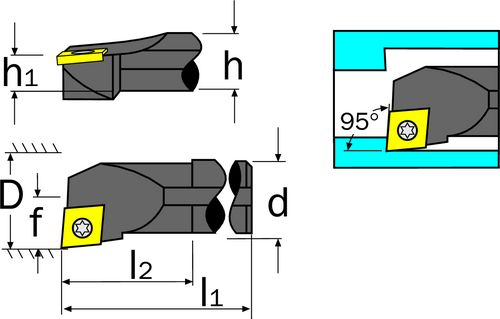

Dimensions dg7 : 16
Dimensions f : 11
Dimensions h : 15
Dimensions h1 : 7.5
Dimensions l1 : 200
Dimensions l2 : 30
Dmin : 20
eCl@ss Code : 28039190
ISO Ref : S16R SCLCR
Overall Weight : 0.3
Supplier Part No. : 106-7480
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
