S16R CTFPR 11 BORING BAR
Rp1.903.000
Indexa Top Clamp Boring Bars – CTFP R/L

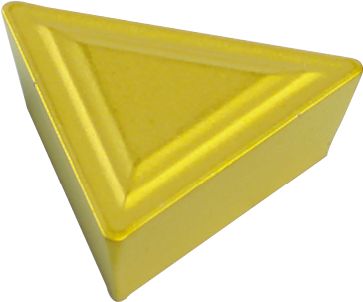

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1066410K
Indexa Top Clamp Boring Bars – CTFP R/L
90° approach for 11° positive triangular inserts.
Specification :
Brand : Indexa

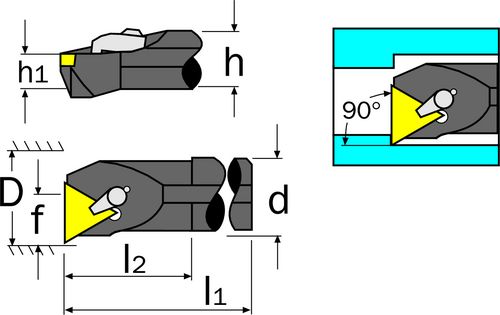

Dimensions dg7 : 16
Dimensions f : 11
Dimensions h : 15
Dimensions h1 : 7.5
Dimensions l1 : 200
Dimensions l2 : 30
Dmin : 20
eCl@ss Code : 28039190
ISO Ref : S16R CTFPR
Overall Weight : 0.29
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
