S12Q SDUCL 07 BORING BAR
Indexa Screw-On Boring Bars – SDUC R/L

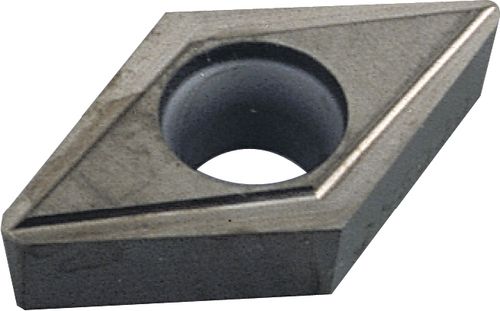

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1067670K
Indexa Screw-On Boring Bars – SDUC R/L
93° approach for 7° positive 55° rhombic inserts.

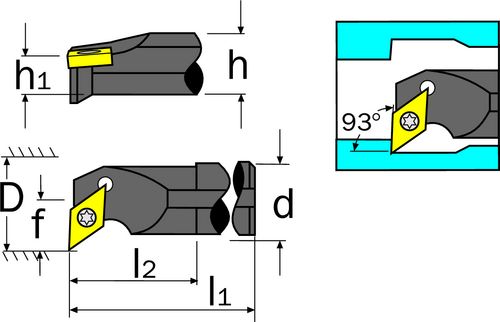

Specification :
Brand : Indexa
Dimensions dg7 : 12
Dimensions f : 9
Dimensions h : 11
Dimensions h1 : 5.5
Dimensions l1 : 180
Dimensions l2 : 25
Dmin : 16
eCl@ss Code : 28039190
ISO Ref : S12Q SDUCL
Overall Weight : 0.15
Supplier Part No. : 106-7670
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
