S12M SCLCR 06 BORING BAR
Rp2.049.000
Indexa Screw-On Boring Bars – SCLC R/L

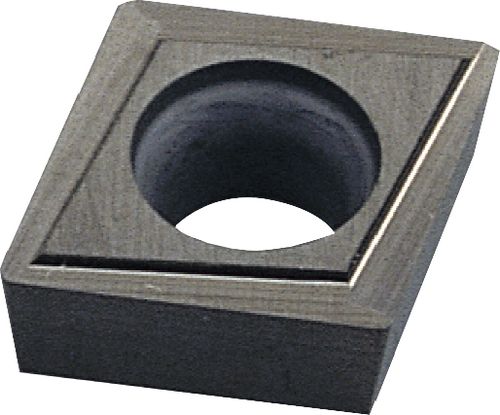

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067435K
Indexa Screw-On Boring Bars – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

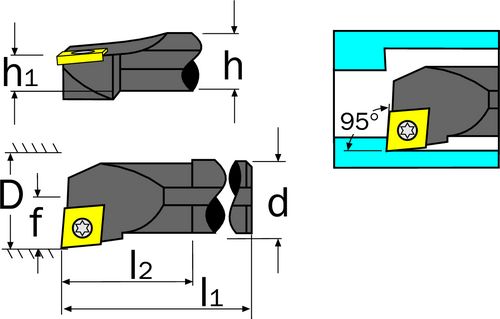

Dimensions dg7 : 12
Dimensions f : 9
Dimensions h : 11
Dimensions h1 : 5.5
Dimensions l1 : 150
Dimensions l2 : 30
Dmin : 17
eCl@ss Code : 28039190
ISO Ref : S12M SCLCR
Overall Weight : 0.13
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
