S10M SCLCL 06 BORING BAR
Rp2.049.000
Indexa Screw-On Boring Bars – SCLC R/L

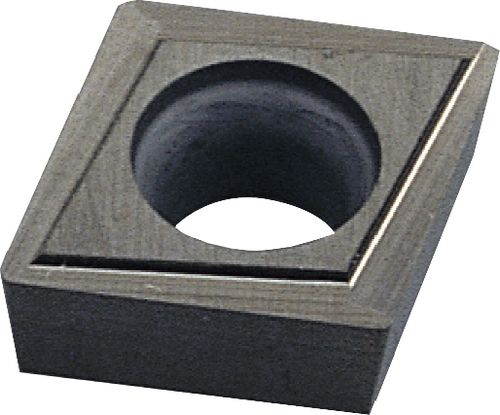

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067410K
Indexa Screw-On Boring Bars – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

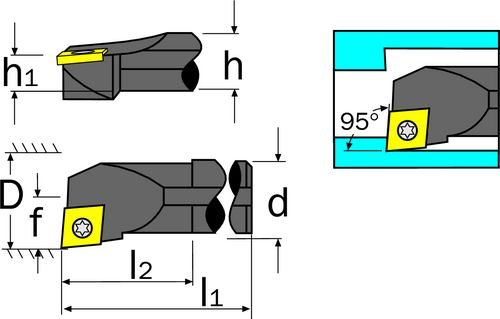

Dimensions dg7 : 10
Dimensions f : 7
Dimensions h : 9
Dimensions h1 : 4.5
Dimensions l1 : 150
Dimensions l2 : 25
Dmin : 13
eCl@ss Code : 28039190
ISO Ref : S10M SCLCL
Overall Weight : 0.085
Supplier Part No. : 106-7410
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
