S08K SCLCL 06 BORING BAR
Indexa Screw-On Boring Bars – SCLC R/L

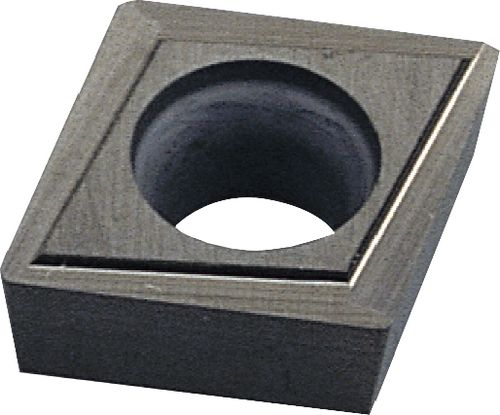

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067390K
Indexa Screw-On Boring Bars – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa

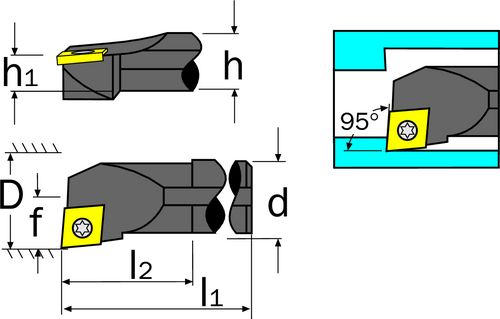

Dimensions dg7 : 8
Dimensions f : 5
Dimensions h : 7
Dimensions h1 : 3.5
Dimensions l1 : 125
Dimensions l2 : 16
Dmin : 11
eCl@ss Code : 28039190
ISO Ref : S08K SCLCL
Overall Weight : 0.045
Supplier Part No. : 106-7390
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
