PWLNR 2020K06 EXTERNAL TOOLHOLDER
Rp1.458.000
Indexa Lever Lock External Toolholders – PWLN R/L

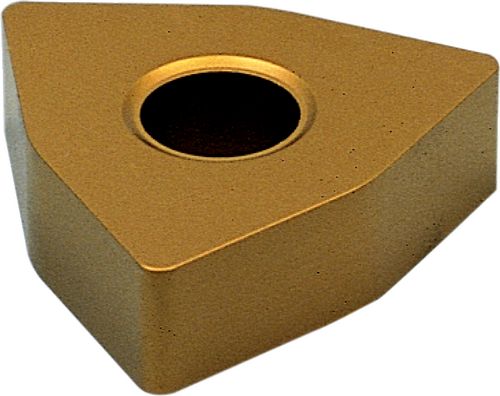

95° approach for negative 80° trigon inserts.
Out of stock
SKU : IND1064090K
Indexa Lever Lock External Toolholders – PWLN R/L
95° approach for negative 80° trigon inserts.
Specification :
Brand : Indexa

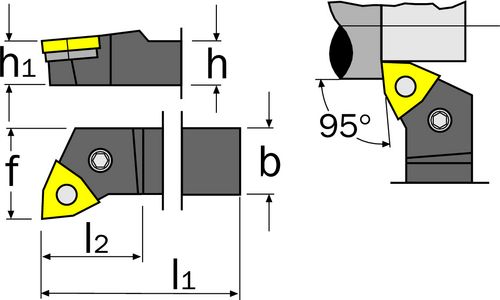

Designation PWLN…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 25
eCl@ss Code : 28039190
Overall Weight : 0.39
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
