PWLNR 1616H06 EXTERNAL TOOLHOLDER
Rp1.317.000
Indexa Lever Lock External Toolholders – PWLN R/L

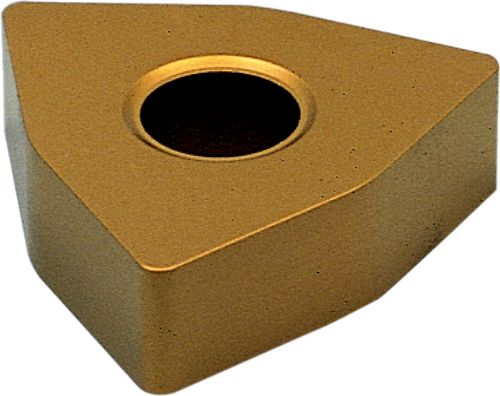

95° approach for negative 80° trigon inserts.
Out of stock
SKU : IND1064080K
Indexa Lever Lock External Toolholders – PWLN R/L
95° approach for negative 80° trigon inserts.
Specification :
Brand : Indexa

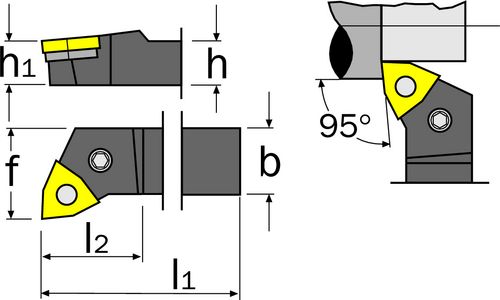

Designation PWLN…. : R 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 21
eCl@ss Code : 28039190
Overall Weight : 0.195
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
