PTGNR 2525M22 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PTGN R/L

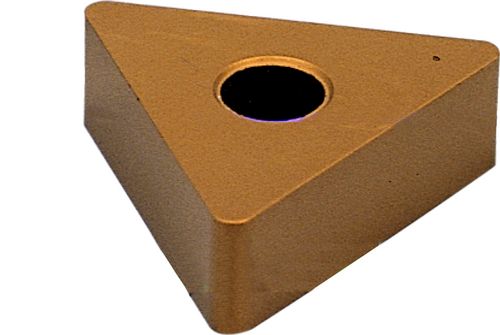

90° approach for negative triangular inserts.
Out of stock
SKU : IND1063980K
Indexa Lever Lock External Toolholders – PTGN R/L
90° approach for negative triangular inserts.

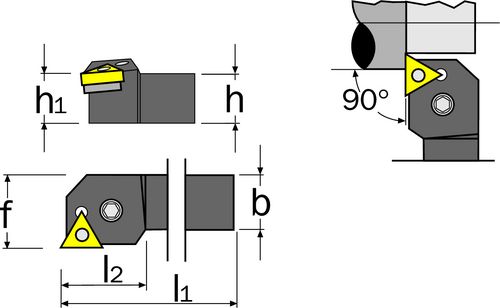

Specification :
Brand : Indexa
Designation PTGN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.725
Supplier Part No. : 106-3980
UNSPSC Code : 23242106
