PTGNR 2525M16 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Lever Lock External Toolholders – PTGN R/L

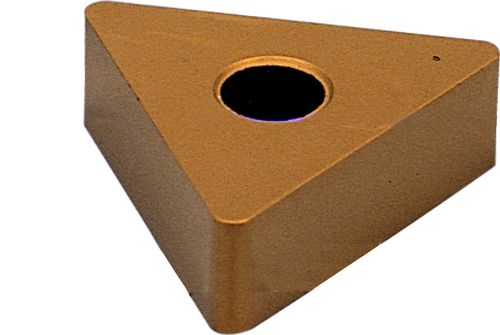

90° approach for negative triangular inserts.
Out of stock
SKUÂ :Â IND1063960K
Indexa Lever Lock External Toolholders – PTGN R/L
90° approach for negative triangular inserts.

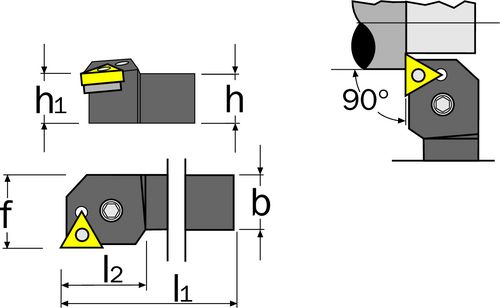

Specification :
Brand : Indexa
Designation PTGN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1Â :Â 25
Dimensions l1Â :Â 150
Dimensions l2Â :Â 22
eCl@ss Code : 28039190
Overall Weight : 0.71
Supplier Part No. : 106-3960
UNSPSC Code : 23242106
