PTGNR 2020K16 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Lever Lock External Toolholders – PTGN R/L

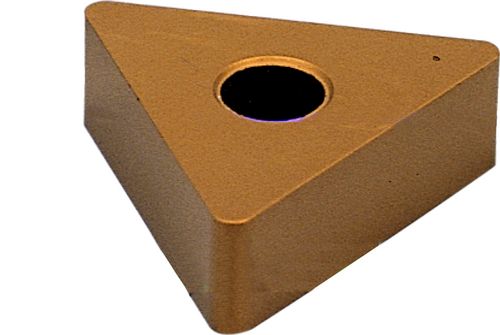

90° approach for negative triangular inserts.
Out of stock
SKU : IND1063940K
Indexa Lever Lock External Toolholders – PTGN R/L
90° approach for negative triangular inserts.
Specification :
Brand : Indexa

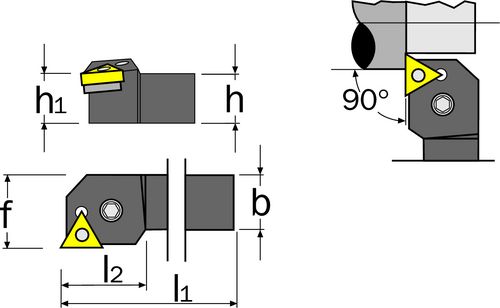

Designation PTGN…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.39
Supplier Part No. : 106-3940
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
