PTGNL 1616H16 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PTGN R/L

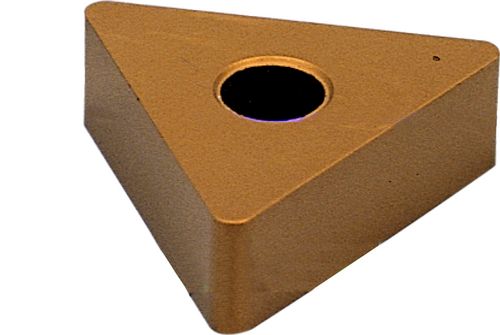

90° approach for negative triangular inserts.
Out of stock
SKU : IND1063910K
Indexa Lever Lock External Toolholders – PTGN R/L
90° approach for negative triangular inserts.

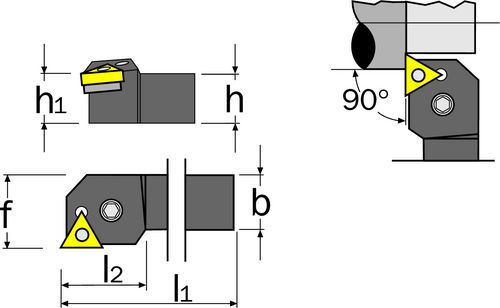

Specification :
Brand : Indexa
Designation PTGN…. : L 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.2
Supplier Part No. : 106-3910
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
