PTFNR 2525M16 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Lever Lock External Toolholders – PTFN R/L

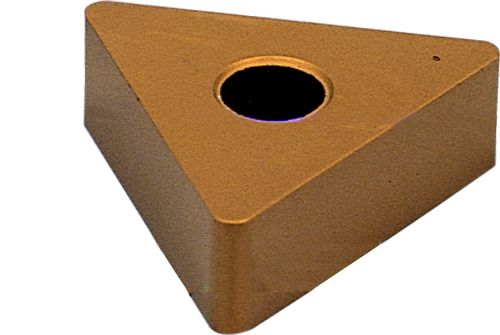

90° approach for negative triangular inserts.
Out of stock
SKU : IND1063740K
Indexa Lever Lock External Toolholders – PTFN R/L
90° approach for negative triangular inserts.
Specification :
Brand : Indexa

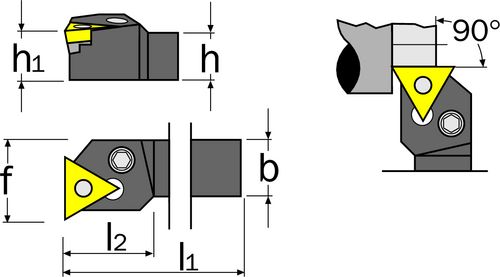

Designation PTFN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.72
Supplier Part No. : 106-3740
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
