PSSNR 2525M12 EXTERNAL TOOLHOLDER

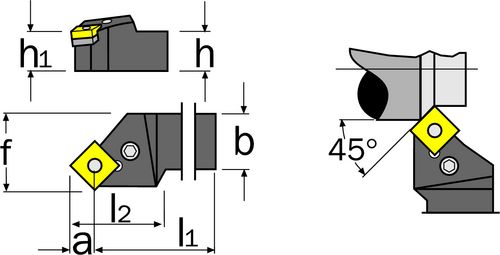

Indexa Lever Lock External Toolholders – PSSN R/L

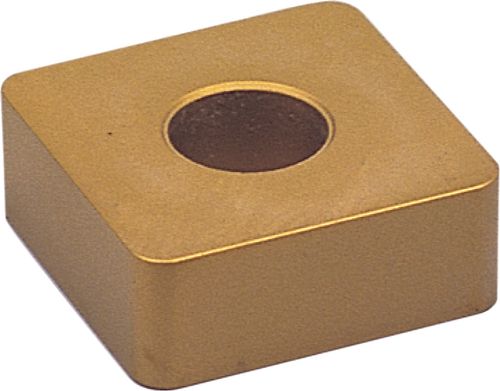

45° offset approach for negative square inserts.
Out of stock
SKU : IND1063560K
Indexa Lever Lock External Toolholders – PSSN R/L
45° offset approach for negative square inserts.
Specification :
Brand : Indexa
Designation PSSN…. : R 2525M
Dimensions a : 8.3
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.74
Supplier Part No. : 106-3560
UNSPSC Code : 23242106
