PSSNR 2020K12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PSSN R/L

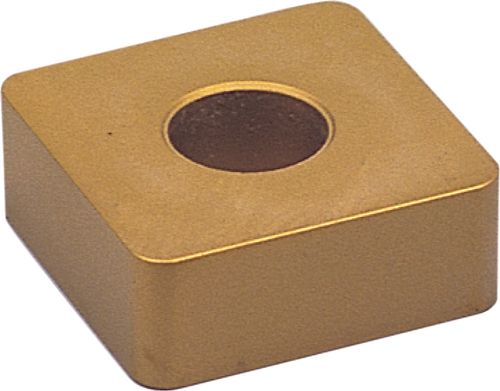

45° offset approach for negative square inserts.
Out of stock
SKU : IND1063540K
Indexa Lever Lock External Toolholders – PSSN R/L
45° offset approach for negative square inserts.

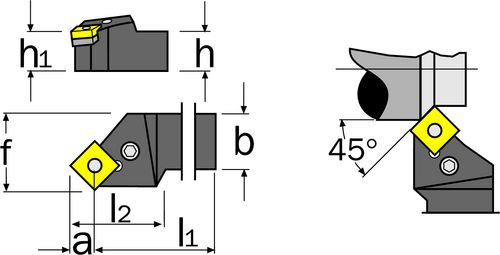

Specification :
Brand : Indexa
Designation PSSN…. : R 2020K
Dimensions a : 8.3
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.4
Supplier Part No. : 106-3540
UNSPSC Code : 23242106
