PSKNR 2525M12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PSKN R/L

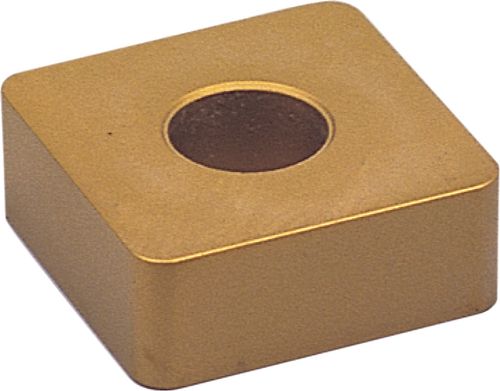

75° approach for negative square inserts.
Out of stock
SKU : IND1063360K
Indexa Lever Lock External Toolholders – PSKN R/L
75° approach for negative square inserts.
Specification :
Brand : Indexa

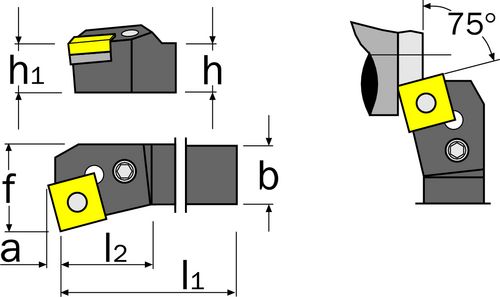

Designation PSKN…. : R 2525M
Dimensions a : 3.1
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Supplier Part No. : 106.3360
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
